Concrete slabs are essential structural elements in buildings, forming the horizontal surfaces that serve as floors, roofs, and sometimes even walls (in the case of precast panels). They provide a flat, stable surface for occupancy and support loads from above, distributing them to the supporting beams, walls, or columns.
Detailed Description:
- Function: Concrete slabs primarily function to:
- Support Loads: Carry dead loads (weight of the slab itself and permanent fixtures) and live loads (occupancy loads, furniture, equipment).
- Distribute Loads: Transfer loads to the supporting structural members (beams, walls, columns).
- Provide a Flat Surface: Create a level and even surface for occupancy, flooring, or roofing.
- Provide Fire Resistance: Concrete provides inherent fire protection, slowing the spread of fire between floors.
- Provide Sound Insulation: Concrete slabs can help reduce noise transmission between floors.
- Types of Concrete Slabs:
- One-Way Slabs:
- Description: Supported on two opposite sides (usually beams or walls) and primarily bend in one direction.
- Characteristics: The length-to-width ratio is typically greater than 2.
- Reinforcement: Main reinforcement runs perpendicular to the supporting members, and distribution reinforcement runs parallel.
- Applications: Simple floor and roof systems for rectangular bays where the span in one direction is significantly longer than the other.
- Two-Way Slabs:
- Description: Supported on all four sides (usually beams or walls) and bend in both directions.
- Characteristics: The length-to-width ratio is typically less than or equal to 2.
- Reinforcement: Main reinforcement runs in both directions, allowing for load distribution in two dimensions.
- Applications: Floor and roof systems for square or nearly square bays.
- Flat Slabs:
- Description: Directly supported by columns without beams or girders.
- Characteristics: Provides a clear, unobstructed space. Drop panels (thickenings of the slab around the column) and/or column capitals (widening of the top of the column) are often used to increase shear capacity at the column-slab connection.
- Reinforcement: Reinforcement is designed to resist bending moments and shear forces around the columns.
- Applications: Parking garages, warehouses, and other spaces where flexibility in layout is important and where exposed ceilings are acceptable.
- Flat Plate Slabs:
- Description: Similar to flat slabs but without drop panels or column capitals.
- Characteristics: Simpler to construct than flat slabs but have a lower load-carrying capacity and are more prone to punching shear failures at the column-slab connection.
- Reinforcement: Requires careful consideration of shear reinforcement around the columns.
- Applications: Apartments, hotels, and other residential buildings with relatively light loads and shorter spans.
- Waffle Slabs (Two-Way Ribbed Slabs):
- Description: Two-way ribbed slabs consisting of a thin concrete topping slab supported by a grid of ribs running in two directions.
- Characteristics: High strength-to-weight ratio, ideal for long spans.
- Reinforcement: Reinforcement is placed in the ribs and in the topping slab.
- Applications: Large open spaces, such as auditoriums, libraries, and exhibition halls.
- Ribbed Slabs (One-Way Joist Slabs):
- Description: A series of closely spaced parallel ribs or joists supported by beams or walls. A thin concrete topping slab covers the ribs.
- Characteristics: Lighter than solid slabs, suitable for medium spans.
- Reinforcement: Reinforcement is placed in the ribs.
- Applications: Floors and roofs in commercial and industrial buildings.
- Composite Slabs:
- Description: Combine concrete with other materials, such as steel decking, to improve performance.
- Characteristics: Steel decking acts as formwork during construction and provides tensile reinforcement after the concrete hardens.
- Applications: Office buildings, commercial buildings, and industrial buildings.
- Precast Concrete Slabs:
- Description: Manufactured in a factory and transported to the site for installation.
- Types: Hollow-core slabs, solid slabs, and ribbed slabs.
- Characteristics: Faster construction, improved quality control.
- Applications: A wide range of building types.
- One-Way Slabs:
- Reinforcement: Steel reinforcement is essential for concrete slabs to resist tensile stresses and control cracking. Common reinforcement arrangements include:
- Main Reinforcement: Primarily resists bending moments.
- Distribution Reinforcement: Controls cracking and distributes loads.
- Temperature and Shrinkage Reinforcement: Controls cracking due to temperature changes and concrete shrinkage.
- Shear Reinforcement (Stirrups or Headed Studs): Increases shear capacity at the column-slab connection in flat slabs and flat plate slabs.
- Slab Thickness: The thickness of a concrete slab depends on several factors, including the span, loads, concrete strength, and reinforcement ratio. Building codes typically specify minimum slab thicknesses.
Advantages of Concrete Slabs:
- Strength: Can support significant loads.
- Durability: Resistant to wear and tear.
- Fire Resistance: Excellent fire protection.
- Sound Insulation: Reduces noise transmission.
- Thermal Mass: Contributes to energy efficiency.
- Versatility: Can be molded into various shapes and sizes.
- Cost-Effective: Can be a cost-effective solution, especially for large projects.
- Long Span Capability: Waffle slabs and pre-stressed slabs can achieve long spans with minimal intermediate supports.
Disadvantages of Concrete Slabs:
- Weight: Concrete is a heavy material.
- Potential for Cracking: Prone to cracking if not properly designed and constructed.
- Slow Construction (Cast-in-Place): Cast-in-place slabs require formwork and curing time.
- Formwork Costs: Formwork can be a significant expense.
- Difficult to Modify: Difficult and expensive to modify after construction.
- Environmental Impact: Cement production contributes to greenhouse gas emissions.
Applications of Concrete Slabs:
- Residential Buildings: Floors and roofs in houses, apartments, and condominiums.
- Commercial Buildings: Floors and roofs in office buildings, retail stores, and shopping malls.
- Industrial Buildings: Floors and roofs in warehouses, factories, and manufacturing plants.
- Parking Garages: Floor slabs in parking structures.
- Bridges: Deck slabs in bridges.
- Pavements: Concrete pavements for roads, highways, and airport runways.
Design Considerations:
Designing a concrete slab involves a complex process that requires careful consideration of several factors:
- Load Analysis: Determining the dead loads, live loads, and other loads that the slab will be subjected to.
- Structural Analysis: Analyzing the slab to determine the bending moments, shear forces, and deflections.
- Reinforcement Design: Selecting the appropriate size, spacing, and placement of steel reinforcement.
- Deflection Control: Ensuring that the slab does not deflect excessively under load.
- Shear Design: Designing the slab to resist shear forces, particularly around columns in flat slabs and flat plate slabs.

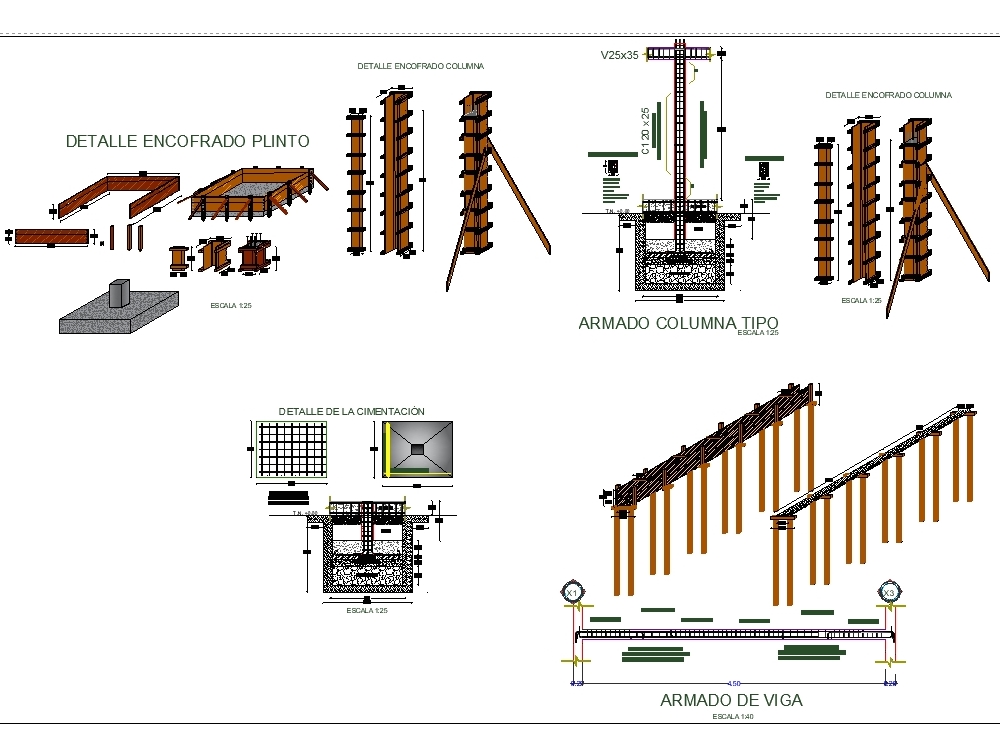

- Detailing: Providing detailed drawings that show the exact placement of reinforcement, the dimensions of the slab, and the connections to other structural elements.
- Code Compliance: Ensuring that the design complies with all applicable building codes and standards.
Advancements and Trends:
- High-Strength Concrete: Reduces slab thickness and reinforcement requirements.
- Self-Consolidating Concrete (SCC): Improves concrete placement and consolidation.
- Fiber-Reinforced Concrete: Enhances tensile strength, ductility, and crack resistance.
- Pre-stressed Concrete: Allows for longer spans and thinner slabs.
- Sustainable Concrete: Reduces environmental impact.
- Building Information Modeling (BIM): Facilitates collaboration and improves design accuracy.
- Smart Slabs: Embedding sensors into slabs to monitor structural health and performance.
In conclusion, concrete slabs are fundamental structural elements that provide the foundation for floors and roofs in a wide range of buildings. Understanding the different types of concrete slabs, their advantages and disadvantages, and the design considerations is essential for architects, engineers, and construction professionals. As with any structural element, proper design, detailing, and construction practices are crucial to ensure the safety, durability, and performance of concrete slabs.
