Concrete Frames, a fundamental type of concrete building structure. I’ll expand on the information I provided in the comprehensive guide to give you a more detailed understanding.
Concrete Frames: The Backbone of Many Structures
Concrete frames represent a fundamental building structure primarily used in high-rise constructions but also in many other construction types. They provide the primary support for a building, acting as a skeletal system that distributes loads throughout the structure.
Detailed Description:
- Components: A concrete frame consists of two primary elements:
- Columns: Vertical members that support loads from above and transfer them to the foundation. They are designed to resist compressive forces and bending moments.
- Beams: Horizontal members that span between columns and support floor slabs, walls, and other loads. They are designed to resist bending moments and shear forces.
- Connection Points (Joints): The junctions where beams and columns meet are critical points in the frame. These joints must be carefully designed and constructed to transfer forces effectively and maintain the structural integrity of the frame. Common joint types include:
- Rigid Joints (Moment Connections): These joints are designed to transfer both forces and moments between the beam and the column. They provide significant stiffness and resistance to lateral loads (like wind or earthquake forces). Achieving a truly rigid joint in concrete is challenging, but well-reinforced connections can approximate this behavior.
- Pin Joints (Hinged Connections): These joints are designed to transfer primarily forces (shear and axial) but not moments. Theoretically, they allow free rotation between the beam and column. In practice, they still offer some rotational resistance.
- Reinforcement: Steel reinforcement is crucial to the performance of concrete frames. Concrete is strong in compression but weak in tension. Steel reinforcing bars (rebar) are embedded within the concrete to provide tensile strength and improve the overall ductility and resistance to cracking. The amount, size, and placement of rebar are carefully calculated based on the expected loads and structural requirements. Common reinforcement arrangements include:
- Longitudinal Reinforcement: Runs along the length of the beam or column to resist bending and axial forces.
- Transverse Reinforcement (Stirrups or Ties): Placed perpendicular to the longitudinal reinforcement to resist shear forces, prevent buckling of longitudinal bars, and confine the concrete core.
- Construction Methods: Concrete frames can be constructed using several methods:

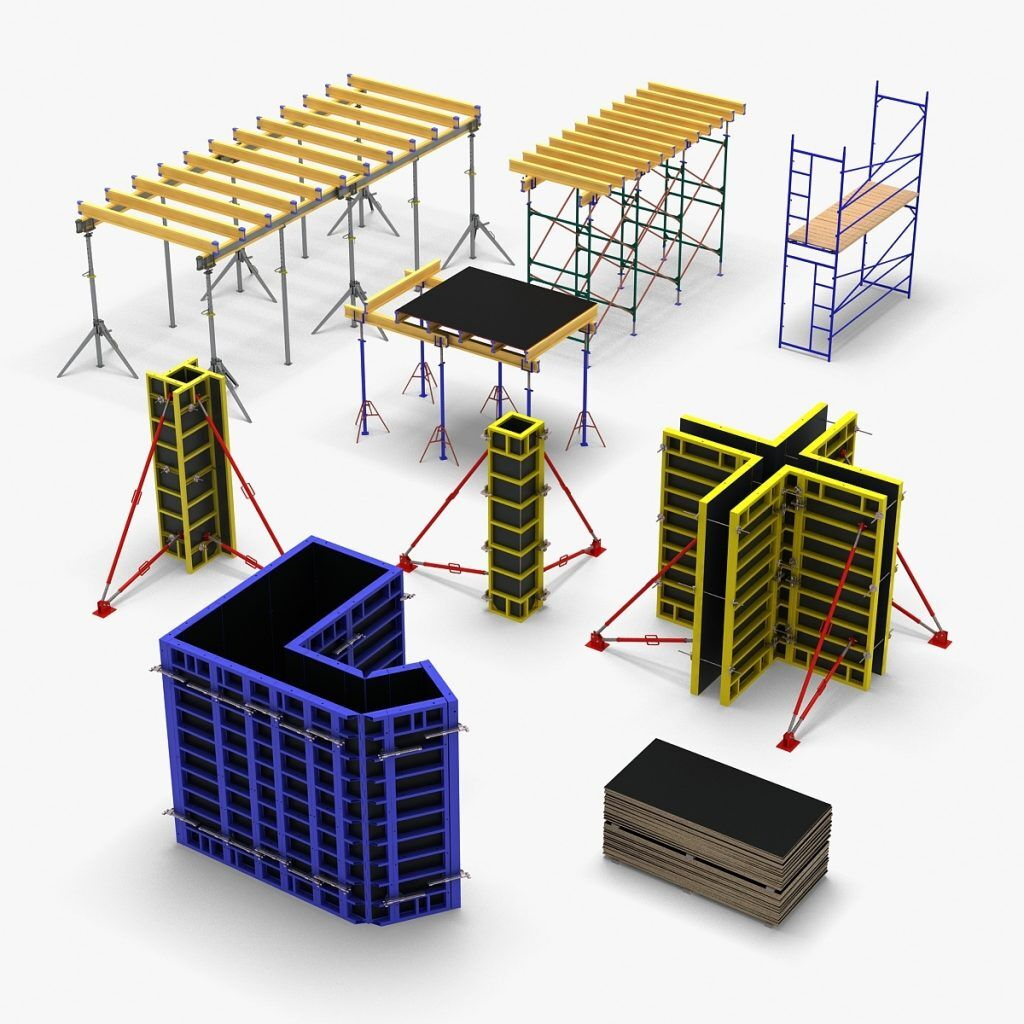

- Cast-in-Place: The entire frame is constructed on-site. This allows for maximum flexibility in design and the ability to handle complex geometries. Formwork (temporary molds) is erected to define the shape of the beams and columns, and concrete is poured into the forms. After the concrete hardens, the formwork is removed.
- Precast: Beams and columns are manufactured in a factory under controlled conditions and then transported to the site for assembly. This method offers faster construction times and better quality control but may limit design flexibility. Connections between precast elements are critical for structural performance.
- Hybrid: Combines cast-in-place and precast elements. For example, precast columns might be used with cast-in-place beams and slabs.
Advantages of Concrete Frames:
- High Strength and Stiffness: Concrete frames can support significant loads and provide excellent resistance to deformation.
- Fire Resistance: Concrete is naturally fire-resistant, making it an ideal material for buildings where fire safety is a concern.
- Durability: Concrete is a durable material that can withstand harsh environmental conditions and resist deterioration over time.
- Sound Insulation: Concrete provides good sound insulation, reducing noise transmission between floors and adjacent spaces.
- Adaptability to Various Designs: Cast-in-place concrete frames can be molded into almost any shape, allowing for architectural freedom.
- Cost-Effectiveness: In many situations, especially for mid- to high-rise buildings, concrete frames can be a cost-effective structural solution, particularly when considering the lifecycle costs (durability, fire resistance).
- Seismic Resistance: Properly designed and reinforced concrete frames can provide excellent resistance to earthquake forces. Ductile detailing (specific reinforcement patterns) is crucial for seismic performance.
Disadvantages of Concrete Frames:
- Slow Construction (Cast-in-Place): Cast-in-place construction can be time-consuming, as it requires formwork erection, concrete pouring, and curing.
- Heavy Material: Concrete is a heavy material, which can increase foundation costs and require specialized equipment for handling.
- Lower Tensile Strength: Concrete’s weakness in tension necessitates the use of steel reinforcement, adding to the cost and complexity of construction.
- Potential for Cracking: Concrete is prone to cracking, especially during the curing process. Proper design, detailing, and construction practices are essential to minimize cracking.
- Environmental Impact: The production of cement, a key ingredient in concrete, is a significant source of greenhouse gas emissions. However, advancements are being made in developing more sustainable concrete mixes.
Applications of Concrete Frames:
- High-Rise Buildings: Concrete frames are a common choice for high-rise buildings due to their strength, fire resistance, and cost-effectiveness.
- Industrial Facilities: Warehouses, factories, and other industrial buildings often utilize concrete frames for their durability and ability to support heavy loads.
- Parking Garages: Concrete frames are well-suited for parking garages due to their strength, durability, and resistance to de-icing salts.
- Office Buildings: Concrete frames provide flexible and adaptable spaces for office environments.
- Schools and Hospitals: The fire resistance and sound insulation properties of concrete make it a suitable material for these types of buildings.
- Bridges: Concrete frames are used in some bridge designs, particularly for shorter spans.
Design Considerations:
Designing a concrete frame involves a complex process that requires careful consideration of several factors:
- Load Analysis: Determining the loads that the frame will be subjected to, including dead loads (weight of the building materials), live loads (occupancy loads), wind loads, and seismic loads.
- Structural Analysis: Analyzing the frame to determine the internal forces (bending moments, shear forces, axial forces) in the beams and columns.
- Reinforcement Design: Selecting the appropriate size, spacing, and placement of steel reinforcement to resist the internal forces and ensure adequate ductility.
- Detailing: Providing detailed drawings that show the exact placement of reinforcement, the dimensions of the beams and columns, and the connections between members. Good detailing is critical for constructability and structural performance.
- Code Compliance: Ensuring that the design complies with all applicable building codes and standards. These codes specify minimum requirements for strength, stiffness, and fire resistance.
Advancements and Trends:
- High-Strength Concrete: Using high-strength concrete allows for smaller member sizes and longer spans, reducing the overall weight and cost of the structure.
- Self-Consolidating Concrete (SCC): SCC is a type of concrete that flows easily into formwork and consolidates under its own weight, reducing the need for vibration and improving the quality of the finished product.
- Fiber-Reinforced Concrete: Adding fibers (steel, glass, or synthetic) to concrete can improve its tensile strength, ductility, and resistance to cracking.
- Sustainable Concrete: Using recycled aggregates, supplementary cementitious materials (SCMs) like fly ash and slag, and other sustainable practices can reduce the environmental impact of concrete production.
- Building Information Modeling (BIM): BIM is being used to create 3D models of concrete frames, allowing for better coordination between architects, engineers, and contractors, and reducing the risk of errors during construction.
In conclusion, concrete frames are a versatile and reliable structural system that provides the backbone for many types of buildings. Understanding the principles of concrete frame design and construction is essential for any architect, engineer, or construction professional. Remember to always consult with qualified structural engineers for the design and analysis of concrete frames to ensure safety and performance.
